Electrical and functional testing verify that a PCB assembly operates correctly under controlled conditions. Environmental stress testing validates that the PCB assembly maintains electrical and mechanical integrity when subjected to the thermal, mechanical, and environmental stresses encountered in real operation.

For mission-critical electronics, reliability is determined not only by design intent but by how materials, solder joints, and mechanical interfaces behave over time under stress. Environmental testing exposes latent weaknesses that standard production testing cannot reveal and provides objective evidence of long-term robustness.

PCB Assembly Thermal Testing at Foxtronics EMS

Failure Mechanisms Driven by Environment

Many field failures originate from cumulative environmental stress rather than immediate manufacturing defects. Key mechanisms include:

  • Thermal expansion mismatch between component packages, solder joints, and PCB laminates, leading to fatigue cracking
  • Intermetallic growth and solder joint embrittlement accelerated by elevated temperature exposure
  • Vibration-induced mechanical fatigue in heavy or unsupported components
  • Connector fretting and loosening under cyclic mechanical loading
  • Moisture ingress and corrosion affecting conductors and insulation resistance
  • Creep and stress relaxation in polymers and mechanical fasteners

These mechanisms often initiate at the solder joint or interface level and progress until electrical failure occurs. Environmental stress testing accelerates these processes, revealing susceptibility before deployment.

Thermal Cycling and Solder Joint Reliability

Thermal cycling is one of the most effective methods for evaluating solder joint durability. Repeated expansion and contraction create shear strain at the solder interface, particularly in components with large thermal mass or coefficient of expansion mismatch.

Factors influencing thermal fatigue resistance include:

  • Solder alloy composition and microstructure
  • Joint geometry and stand-off height
  • Pad design and copper balance
  • Component body size and mass
  • PCB laminate properties and thickness

Crack initiation often occurs at the solder to pad or solder to lead interface. Progression can remain electrically intermittent before complete failure, making detection difficult without stress exposure.

Thermal cycling reveals both design and process sensitivities that affect long-term reliability.

Vibration and Mechanical Stress Response

Vibration testing evaluates the structural integrity of components and solder joints under dynamic mechanical loading. PCB assemblies with tall, heavy, or cantilevered components are particularly susceptible.

Key risk factors include:

  • Insufficient mechanical support or strain relief
  • High component mass relative to pad size
  • Long leaded through-hole components
  • Connector insertion forces and retention stress
  • PCB flexure due to mounting configuration

Vibration can initiate micro-cracks or propagate existing solder fatigue damage. Failures may appear only after repeated cycles or combined thermal exposure, making combined stress testing especially valuable.

Moisture, Humidity, and Electrochemical Effects

Humidity exposure introduces corrosion and insulation risks that may not be evident during dry electrical testing. Moisture can migrate along interfaces or through porous residues, enabling electrochemical reactions.

Potential effects include:

  • Dendritic growth between conductors
  • Corrosion of exposed metals
  • Flux residue activation
  • Reduced insulation resistance
  • Long-term leakage currents

Humidity testing evaluates material compatibility, cleanliness, coating effectiveness, and sealing integrity. These factors strongly influence reliability in outdoor, medical, and industrial environments.

Thermal Shock and Material Interface Stress

Thermal shock subjects PCB assemblies to rapid temperature transitions, producing high strain rates at material interfaces. Unlike gradual cycling, shock stresses joints before thermal equilibrium occurs.

This is particularly relevant for:

  • Ceramic components on organic substrates
  • Large BGAs or power packages
  • Thick copper or metal core boards
  • Assemblies with mixed material coefficients

Thermal shock can expose brittle intermetallic layers or marginal wetting conditions that would survive slower cycling.

Accelerated Stress and Reliability Modeling

Environmental stress testing often uses accelerated profiles to compress years of exposure into manageable test durations. Elevated temperature ranges, increased cycle counts, or amplified vibration spectra reveal relative robustness and process consistency.

While accelerated testing does not perfectly replicate field conditions, it enables:

Correlation between accelerated and field performance improves as failure mechanisms are understood and controlled.

Coupling Environmental Stress With Functional Verification

Environmental testing gains value when combined with electrical or functional measurement during or after exposure. Intermittent opens, drift, or parameter shifts under stress often precede permanent failure.

Examples include:

  • Functional operation at temperature extremes
  • Resistance monitoring during vibration
  • Leakage or insulation testing after humidity exposure
  • Signal integrity verification across thermal range

This coupling links environmental durability directly to product performance rather than treating stress testing as a separate qualification exercise.

Design and Assembly Implications

Environmental reliability emerges from the interaction of design and manufacturing execution. Key contributors include:

  • Component selection and package type
  • Pad geometry and copper distribution
  • PCB material and thickness
  • Solder alloy and process control
  • Mechanical support and strain relief
  • Cleanliness and residue management

Environmental stress testing often reveals that marginal solder geometry or insufficient wetting significantly reduces fatigue life. This directly connects environmental robustness to workmanship quality.

Tie Forward: Workmanship Classes and Environmental Reliability

Environmental stress results frequently correlate with workmanship acceptance levels defined in IPC-A-610. Solder joint geometry, wetting, fillet formation, and voiding all influence fatigue resistance and environmental durability.

As electronics move into harsher operating environments, workmanship expectations become more stringent. PCB assemblies intended for mission-critical use must maintain structural integrity under stress, not merely pass visual inspection.

In next week’s blog, we examine IPC-A-610 classes and how acceptance criteria align with reliability expectations across product categories. Understanding these classes helps OEMs match workmanship standards to environmental and operational risk.

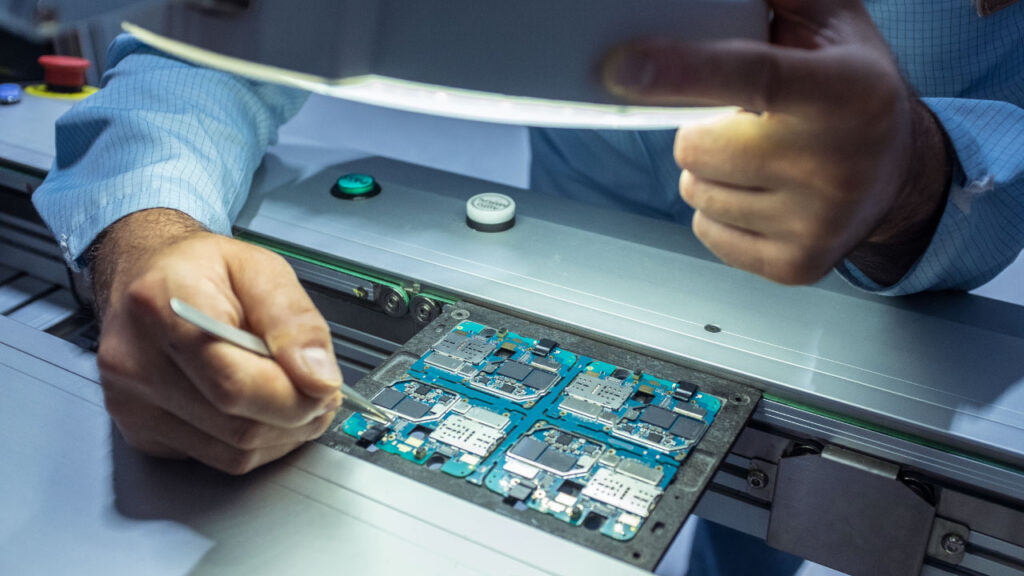

PCB Assembly Environment Testing at Foxtronics EMS facility

What This Means for OEMs

Environmental stress testing provides the most realistic validation of long-term electronic reliability. It exposes latent weaknesses driven by materials, solder geometry, and mechanical design that standard inspection and electrical testing cannot detect.

OEMs developing mission-critical electronics for various industries should align environmental requirements, workmanship standards, and PCB assembly processes early in product development. Reliability is achieved when design intent, manufacturing quality, and environmental validation reinforce each other.

At Foxtronics EMS, environmental stress testing complements our electrical, functional, and workmanship-controlled assembly processes. By validating PCB assemblies under realistic stress conditions, we help OEMs ensure performance and durability throughout the product lifecycle.

Partner with Foxtronics EMS to ensure your mission‑critical electronics withstand real‑world stress and deliver reliable performance every time.
