Precision at Every Pad
Surface mount technology, or SMT, is at the heart of modern electronics manufacturing. It allows components to be placed and soldered directly onto printed circuit boards with remarkable accuracy and efficiency. But achieving consistent quality requires more than advanced equipment. It demands careful SMT assembly process optimization and control at every step.
At Foxtronics EMS, we have refined our SMT assembly processes to ensure every joint, placement, and reflow meets the highest standards of precision and reliability. From stencil design to solder paste inspection, every parameter is analyzed and controlled to deliver consistent results across every production run.
The Foundation of a Reliable SMT Assembly Process
The SMT assembly process is a series of interdependent steps that must work together in perfect alignment.
Key stages of SMT Assembly:
- Solder paste printing
- Component placement
- Reflow soldering
- Inspection and testing
Each step influences the next. A small variation in paste thickness, placement accuracy, or temperature profile can create defects such as bridging, tombstoning, or insufficient solder joints. Foxtronics EMS applies process controls, statistical monitoring, and continuous feedback loops to ensure stability and repeatability across every build.
Solder Paste Printing: Where Quality Begins
The quality of an SMT assembly begins with the solder paste print. Foxtronics EMS uses precision stencil printers equipped with automated alignment and pressure control to deposit consistent solder volumes on every pad.
Key process controls include:
- Stencil thickness and aperture design tailored to component size
- Automated paste height and position verification
- Controlled environment for temperature and humidity stability
- Regular stencil cleaning to prevent bridging or clogging
We also monitor paste age and viscosity, ensuring that every deposit maintains the ideal shape and volume for proper wetting during reflow.

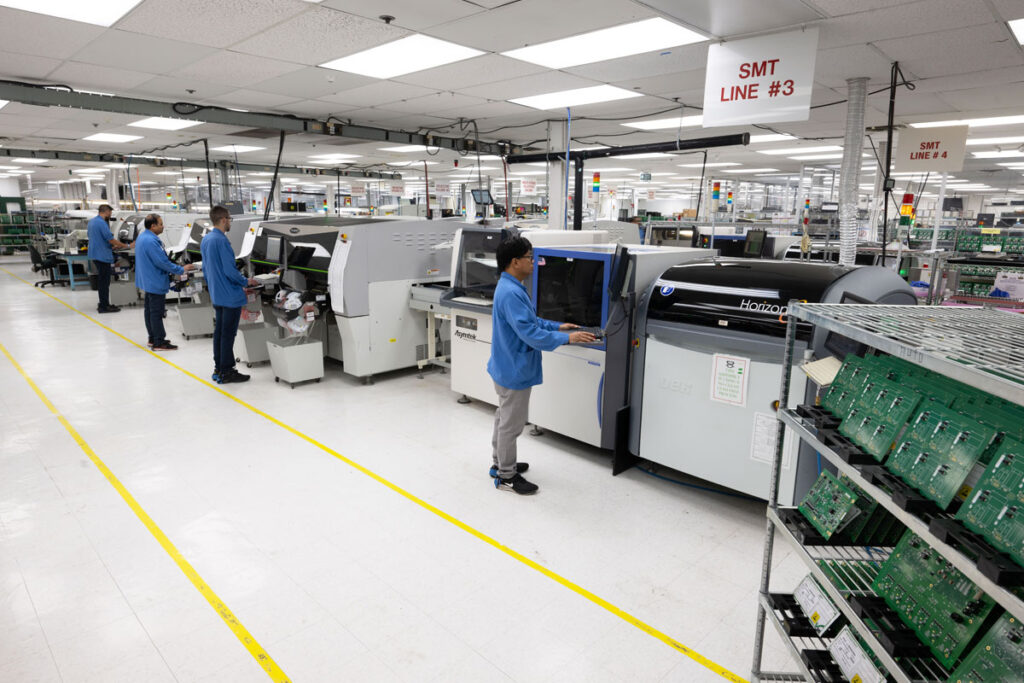

Automated Component Placement in SMT Assembly
Modern SMT lines can place tens of thousands of components per hour, but speed is only valuable when paired with accuracy. Foxtronics EMS utilizes high-precision placement systems that achieve micrometer-level accuracy.
Before production begins, our engineers validate component libraries, feeder alignment, and vision recognition to ensure consistent performance. During production, automated verification systems continuously confirm that every part is placed correctly in orientation, polarity, and position. This attention to detail eliminates the risk of misplaced or rotated components that could lead to field-related functional issues, ensuring high‑reliability PCB assembly for mission‑critical industries.
Reflow Soldering and Thermal Profiling
Once components are placed, the PCB assembly passes through the reflow oven, where solder joints are formed. Temperature control in this step is critical. Too much heat can damage components, while too little can lead to weak or incomplete joints.
Foxtronics EMS develops custom reflow profiles for every product based on board density, solder alloy, and component mass. We monitor conveyor speed, zone temperature, and ramp rates to ensure each joint achieves proper wetting without thermal stress. Each oven is equipped with thermal profiling tools that record and verify temperature distribution for ongoing process validation.
Solder Joint Inspection and Quality Control
Inspection is the proof of process control. Foxtronics EMS employs multiple inspection methods to verify the quality of every solder joint.
Our systems include:
- Automated optical inspection (AOI) for every assembly
- 3D solder paste and post-reflow measurement
- X-ray analysis for hidden joints such as BGAs and QFNs
- Manual visual inspection under high magnification for verification
Each inspection result is logged and traceable to the specific production batch, providing complete visibility and accountability.
SMT Process Improvement and Yield Optimization
Foxtronics EMS maintains an ongoing process improvement program focused on reducing defects and enhancing efficiency. We use real-time SPC (statistical process control) data from printers, placement machines, and reflow ovens to monitor trends and identify early signs of drift.
Engineering teams conduct regular root cause analysis for any nonconformance, ensuring that corrective actions are both documented and sustained. By combining technology with disciplined analysis, we continuously improve solder yield and product reliability.
Operator Training and Certification
Even the most automated SMT line depends on skilled operators and technicians. Foxtronics EMS invests in continuous training to ensure every team member understands process standards and best practices.
All production staff are trained to the IPC A-610 and J-STD-001 standards, with ongoing audits and certifications to maintain compliance. This ensures that every operator has the knowledge and skill to recognize potential issues before they affect quality.
Conclusion: Precision You Can See in Every SMT Assembly
At Foxtronics EMS, our SMT assembly process is built on precision, control, and accountability. Every stencil, placement, and solder joint is the result of careful planning and constant verification.
By optimizing process parameters and maintaining rigorous quality standards, we ensure that every PCB assembly leaving our facilities performs flawlessly from first power-up to the last day of service. From rapid prototyping to volume manufacturing, our process controls scale without sacrificing yield.
If your products demand the highest level of precision and reliability, Foxtronics EMS is ready to help. Contact our engineering team to learn how our SMT optimization and solder control processes can enhance your next production run.
