A finished design is not the same as a production-ready product.
Engineering may have proven the concept. The schematic may be complete. The board layout may be released. Prototype units may have passed early testing. The product may function exactly as intended in the lab.
But manufacturing introduces a different question.
Can the design be built repeatedly, tested consistently, sourced reliably, documented clearly, and delivered at the required level of quality?
That is where design transfer becomes important.
Design transfer is the process of moving a product from engineering development into manufacturing. It connects what the design is supposed to do with how it will actually be built, inspected, tested, documented, and supported in production.
For OEMs, design transfer is one of the most important steps in the product lifecycle. When it is managed well, it helps reduce production delays, quality issues, sourcing problems, test confusion, and documentation gaps. When it is rushed or incomplete, even a strong design can struggle in production.
What Is Design Transfer?
Design transfer is the structured handoff between engineering and manufacturing.
It includes the information, documentation, reviews, decisions, and processes required to turn an approved design into a repeatable manufacturing program.
In electronics manufacturing, design transfer may include:
- Final design files
- PCB fabrication data
- Assembly drawings
- Bill of materials
- Approved vendor information
- Pick and place files
- Test procedures
- Programming instructions
- Inspection criteria
- Packaging requirements
- Quality requirements
- Revision control
The goal is to make sure the manufacturing team has everything needed to build the product correctly and consistently.
Design transfer is not simply sending files to an EMS provider. It is a coordinated process that confirms the design, documentation, materials, test approach, and production method are aligned before manufacturing begins.
Why Design Transfer Matters
Many production problems begin before production starts.
A missing drawing, unclear BOM, incomplete test procedure, unavailable component, undocumented firmware revision, or unreviewed assembly step can create confusion once the product moves into manufacturing.
These issues often show up as:
- Production delays
- Engineering clarification requests
- Incorrect revisions
- Material shortages
- Test failures
- Rework
- Inconsistent builds
- Quality escapes
- Cost increases
- Delayed shipments
Design transfer helps prevent these issues by identifying gaps before they affect production.
A strong design transfer process gives both the OEM and EMS partner a shared understanding of what is being built, how it will be built, how it will be tested, and what standards must be met.
Engineering Success Does Not Guarantee Manufacturing Success
A product can work perfectly in engineering validation and still create manufacturing challenges.
Prototype builds are often flexible. Engineers may manually adjust units, approve substitutions quickly, troubleshoot directly with technicians, or rely on informal knowledge that is not fully documented.
Production requires a different level of control.
Operators need clear instructions. Purchasing needs accurate sourcing information. Quality teams need inspection criteria. Test technicians need repeatable procedures. Program managers need revision control and schedule visibility. Customers need consistent results from build to build.
The transition from engineering to production is where assumptions become risks.
Design transfer helps convert engineering intent into manufacturing reality.
Documentation Must Be Complete and Controlled
Documentation is the foundation of design transfer.
If documentation is incomplete, outdated, or inconsistent, the manufacturing process starts with uncertainty. That uncertainty can affect purchasing, assembly, inspection, testing, and final release.
A design transfer package should include:
- Current revision drawings
- PCB fabrication files
- Assembly drawings
- Bill of materials
- Approved manufacturer part numbers
- Approved alternates
- Component placement data
- Soldering requirements
- Mechanical drawings
- Test procedures
- Programming files
- Packaging and labeling instructions
Revision control is critical. The EMS partner must know which files are current, which changes have been approved, and which version of the product is intended for production.
Even small mismatches can create problems. A BOM that does not match the assembly drawing, a board file that does not match the latest revision, or a firmware file without version control can slow production and create avoidable risk.
BOM Review and Material Readiness
The bill of materials plays a central role in design transfer.
A BOM is not only a parts list. It drives sourcing, cost, availability, approved substitutions, compliance, lead time, and production planning.
Before production begins, OEMs and their EMS partner should review:
- Manufacturer part numbers
- Approved alternates
- Package sizes
- Reference designators
- Quantities per assembly
- Lifecycle status
- RoHS or compliance requirements
- Long lead time components
- Obsolete or high-risk parts
- Customer-supplied material
- No-substitution components
- Critical supply chain risks
A product may be technically ready to manufacture but still unable to move forward if the material plan is weak.
Design transfer should identify sourcing concerns early so the OEM can make informed decisions before production schedules are affected.
DFM Review During Design Transfer
Design for manufacturability (DFM) should be part of design transfer.
Even if a product has already been prototyped, the design should be reviewed before production through the lens of repeatable assembly.
A DFM review may evaluate:
- Component spacing
- Board Panelization
- Fiducial placement
- Solder joint accessibility
- Thermal balance
- Connector orientation
- Test point access
- Mechanical fit
- Through-hole requirements
- Rework difficulty
- Conformal coating concerns
- Final assembly requirements
The purpose of DFM is not to challenge the design unnecessarily. The purpose is to identify manufacturing risks before they become production problems.
A design that works electrically may still create avoidable difficulty during assembly, inspection, test, or box build.
Test Strategy and Design Transfer
Testing should be defined before production begins.
A common design transfer gap occurs when a product is released to manufacturing without a clear test strategy. The assembly may be buildable, but the manufacturing team may not have enough information to verify performance consistently.
OEMs should confirm:
- What functions must be tested
- Whether board-level or system-level test is required
- What equipment or fixtures are needed
- Whether firmware must be loaded
- What pass/fail criteria apply
- What test data must be recorded
- How failures should be documented
- Whether retest is allowed
- Who approves test changes
- How test results are retained
Functional testing should not be left to interpretation.
A repeatable test process helps confirm that each assembly performs as intended before it leaves the manufacturing environment.
Firmware, Programming, and Configuration Control
Many electronic products require programming or configuration during manufacturing.
This may include firmware files, bootloaders, calibration values, serial numbers, communication settings, product variants, or customer-specific configuration data.
Design transfer should define:
- Approved firmware versions
- Programming tools
- Programming instructions
- Configuration files
- Version control requirements
- Serialization rules
- Verification method
- Reprogramming limits
- Data retention requirements
- Customer approval process
Firmware is part of the product. If it is not controlled, the finished assembly may not match the approved design even if the physical build is correct.
Quality and Acceptance Criteria
Quality expectations must be clear during design transfer.
The EMS partner should understand what standards apply, what customer requirements exist, and what acceptance criteria must be used during inspection and release.
Quality planning may include:
- IPC class expectations
- Customer-specific workmanship standards
- Regulatory or industry requirements
- First article inspection
- Traceability requirements
- Serialization requirements
- Nonconforming material process
- Corrective action expectations
- Test record requirements
- Final release criteria
Clear acceptance criteria reduce ambiguity.
When quality expectations are defined before production, the manufacturing team can build, inspect, test, and release product against the same standards the customer expects.
Box Build and System-Level Considerations
Design transfer should include the full product, not only the PCB assembly.

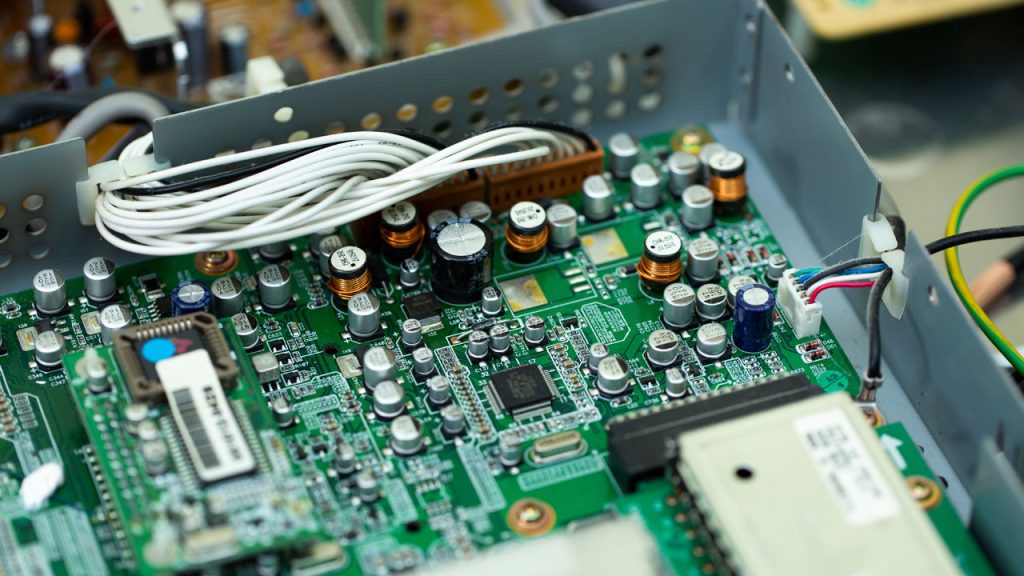

For many OEMs, the PCB assembly is part of a larger system. It may need to be installed into an enclosure, connected to cables, programmed, labeled, tested, packaged, and shipped as a finished product.
Box build considerations may include:
- Enclosure drawings
- Hardware requirements
- Cable and harness installation
- Connector access
- Labeling requirements
- Serial number placement
- Firmware loading
- Final functional test
- Packaging instructions
- Shipping configuration
If box build assembly requirements are not included in design transfer, the product may pass board-level assembly but still encounter problems during final integration.
Manufacturing readiness should consider the complete product path.
Communication Between OEM and EMS Partner
Design transfer is not only a documentation exercise.
It is also a communication process.
The OEM and EMS partner should clarify responsibilities, decision-making authority, review timing, escalation paths, and approval requirements.
Important questions include:
- Who approves component substitutions?
- Who owns engineering changes?
- Who reviews DFM recommendations?
- Who approves first article results?
- Who provides test fixtures?
- Who controls firmware files?
- Who reviews production issues?
- Who approves quality deviations?
- Who manages customer-supplied material?
- Who updates documentation after changes?
Clear communication helps prevent delays once production begins.
A strong EMS partner does not simply receive files and build product. It helps the OEM identify missing information, clarify requirements, and prepare the program for repeatable manufacturing.
Common Design Transfer Mistakes
Many design transfer problems are avoidable.
Common mistakes include:
- Sending incomplete documentation
- Using uncontrolled file revisions
- Releasing a BOM with obsolete or unavailable parts
- Failing to define approved alternates
- Waiting too long to review DFM
- Treating test strategy as an afterthought
- Not controlling firmware versions
- Omitting packaging or labeling requirements
- Assuming prototype methods will work in production
- Not defining quality expectations clearly
These gaps may seem small during development, but they can become expensive once production begins.
Design transfer helps surface these issues early.
How Foxtronics EMS Supports Design Transfer
Foxtronics EMS supports OEMs through the transition from engineering to manufacturing by helping align documentation, sourcing, DFM review, PCB assembly, testing, box build, production planning, and long-term support.
This matters because design transfer touches every part of the manufacturing process. A product cannot move smoothly into production if the files are incomplete, the BOM is unstable, the test strategy is unclear, or the assembly process has not been reviewed.
Foxtronics works with OEMs to help turn engineering intent into a controlled manufacturing process. Whether a program requires prototype support, NPI, production readiness review, high-reliability PCB assembly, functional testing, box build, supply chain coordination, or ongoing production support, the goal is to reduce risk before it reaches the production floor.
Conclusion
Design transfer is the bridge between engineering and manufacturing.
It is the process that turns a working design into a repeatable production program. Documentation, BOM accuracy, DFM review, test strategy, firmware control, quality criteria, box build requirements, and communication all play a role.
A finished design may prove that a product can work.
A strong design transfer process helps prove that the product can be built, tested, and delivered consistently.
Foxtronics EMS helps OEMs manage this transition by connecting engineering intent with manufacturing execution. From PCB assembly and sourcing to testing, box build, production services, and long-term support, Foxtronics provides the structure needed to move complex electronics from design release to production reality.
The design matters.
But the transfer from design to manufacturing is what turns that design into a reliable product.
