A completed PCB assembly is often not the finished product.
For many OEMs, the circuit board is only one part of a larger system. The board may need to be installed into an enclosure, connected to cables, programmed, labeled, tested, packaged, and prepared for shipment. It may need hardware, displays, switches, molded parts, wire harnesses, adhesives, gaskets, seals, or mechanical components.
That next stage is box build assembly.
Box build assembly connects board-level manufacturing with finished product integration. It helps OEMs move from a tested PCBA to a complete unit that is closer to final customer use.
For complex electronics, this stage matters. A product can pass board-level inspection and still encounter problems during final assembly if enclosure fit, cable routing, labeling, programming, mechanical hardware, or final test requirements are not planned correctly.
For OEMs, the lesson is straightforward.
Box build should not be treated as an afterthought. It should be planned as part of the manufacturing strategy.
What Is Box Build Assembly?
Box build assembly refers to the process of integrating one or more PCB assemblies into a higher-level product or system.
The term can describe a wide range of manufacturing activity. For one product, box build may mean mounting a board in a simple plastic enclosure. For another, it may involve complex wiring, power supplies, displays, switches, firmware loading, mechanical hardware, final functional test, labeling, serialization, and packaging.
Box build assembly may include:
- Enclosure assembly

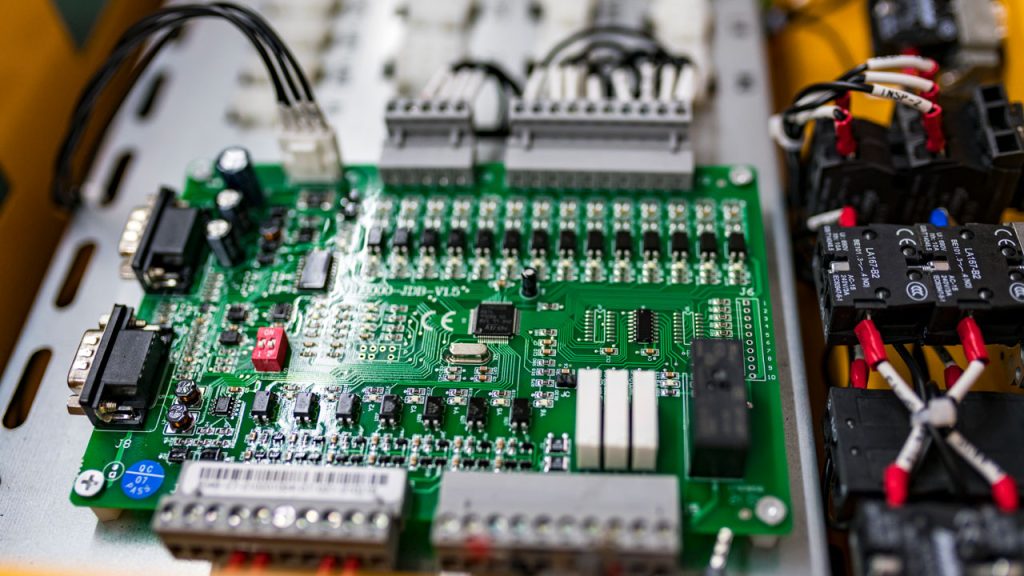

- PCBA installation
- Cable and harness installation
- Connector mating
- Mechanical hardware installation
- Display or user interface integration
- Switch and control installation
- Firmware loading
- Labeling and serialization
- Final functional test
- Packaging
- Shipping preparation
The complexity depends on the product.
But in every case, box build is where electrical, mechanical, documentation, quality, and logistics requirements come together.
Why Box Build Planning Matters
Box build assembly creates a different set of manufacturing risks than PCB assembly alone.
At the board level, the focus may be solder quality, component placement, inspection, and electrical test. At the box build level, the focus expands to fit, routing, access, mechanical stability, final configuration, user interface, system behavior, packaging, and shipment readiness.
Common issues include:
- Boards that do not fit cleanly into the enclosure
- Connectors that are difficult to access
- Cables that are too short, too long, or routed poorly
- Hardware that interferes with components
- Labels that are missing or placed incorrectly
- Firmware versions that are not controlled
- Final test requirements that are unclear
- Packaging that does not protect the finished unit
- Customer-supplied parts arriving late
- Documentation that does not match the build
These issues can delay production even when the PCB assembly itself is correct.
Planning box build requirements early helps prevent avoidable problems later.
PCBA Design Affects Box Build Success
A product’s box build success often begins with the PCB design.
Connector placement, mounting holes, board outline, component height, thermal design, test point location, and cable access can all affect final integration. A board may be electrically sound but difficult to assemble into the finished product.
OEMs should consider:
- Board mounting points
- Connector orientation
- Cable bend radius
- Component height clearance
- Heat sink or thermal pad location
- Access to programming headers
- Access to test points
- Alignment with enclosure openings
- Serviceability
- Fastener access
- Strain relief
- Environmental protection
Design for manufacturability should include more than board assembly.
For products that require box build, DFM should also consider how the PCBA becomes part of the final system.
Enclosures and Mechanical Integration
The enclosure is one of the most important elements of box build assembly.
It protects the electronics, supports mechanical structure, provides user access, manages heat, and contributes to the product’s appearance and durability. Enclosures may be plastic, metal, custom molded, machined, sheet metal, or commercially available.
OEMs should confirm:
- Enclosure drawings
- Approved revision levels
- Hardware requirements
- Mounting methods
- Torque requirements
- Gasket or seal requirements
- Venting or thermal requirements
- Cable entry points
- Label areas
- Finish requirements
- Cosmetic acceptance criteria
- Packaging orientation
Mechanical details should be documented clearly. A missing washer, incorrect screw length, or unclear torque requirement can affect fit, reliability, or appearance.

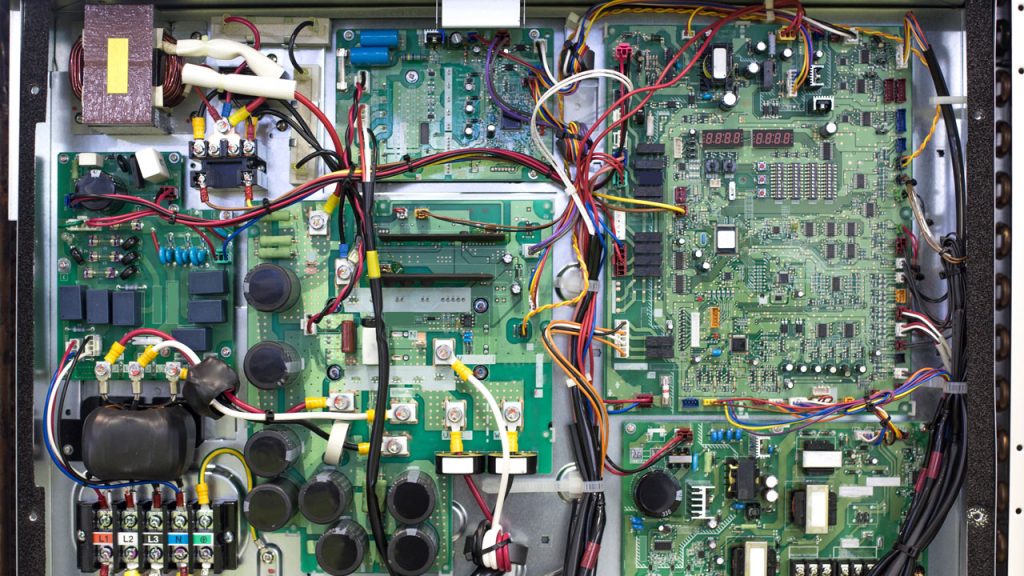

Cable and Harness Requirements
Cables are often a major part of box build assembly.
They connect boards, displays, controls, sensors, power inputs, external interfaces, and mechanical components. Poor cable planning can create assembly difficulty, intermittent failures, strain on connectors, or service issues.
Cable and harness planning should include:
- Cable drawings
- Connector part numbers
- Pinouts
- Length requirements
- Routing instructions
- Strain relief
- Tie-down locations
- Bend radius requirements
- Shielding requirements
- Labeling requirements
- Continuity testing
- Final installation inspection
Cables should not be treated as incidental parts.
In many products, cable routing and connector reliability are central to product performance.
Programming, Configuration, and Serialization
Many finished products require programming or configuration during box build.
This may include firmware loading, software configuration, customer-specific settings, calibration values, MAC addresses, serial numbers, or product identity labels. If these steps are not controlled, units can leave production with the wrong configuration even if the physical assembly is correct.
OEMs should define:
- Approved firmware versions
- Programming tools
- Configuration files
- Serial number format
- Label data
- MAC address or device ID requirements
- Calibration instructions
- Data recording requirements
- Customer-specific settings
- Final verification steps
Programming and serialization should be treated as controlled manufacturing steps, not informal technical tasks.
Final Functional Test
Box build assembly often requires a final functional test.
A PCBA may pass board-level test, but the finished system still needs to be verified after installation. Cables, switches, displays, enclosures, power supplies, sensors, and user interfaces may all affect final operation.
Final test may include:
- Power-up verification
- Display check
- Button or switch operation
- Communication testing
- Sensor response
- Output verification
- Current draw measurement
- Firmware version confirmation
- Calibration review
- Safety checks
- Burn-in or run-in when required
- Final quality release
The test procedure should define pass/fail criteria clearly. Operators should know what to test, how to test it, what equipment is required, and how to document results.
Labeling and Documentation
Labels may seem simple, but they are important in finished product assembly.
Labels may include product identification, serial numbers, regulatory marks, safety warnings, customer branding, revision levels, barcodes, date codes, or shipping information. Incorrect labeling can create traceability problems, compliance issues, customer confusion, or shipment delays.
OEMs should confirm:
- Label artwork
- Label material
- Placement location
- Barcode requirements
- Serial number rules
- Regulatory markings
- Customer branding
- Date code requirements
- Packaging labels
- Documentation included with shipment
Documentation should also include assembly drawings, work instructions, test procedures, inspection criteria, and packaging requirements.
The more complete the documentation, the less room there is for interpretation.
Supply Chain Complexity in Box Build
Box build assembly often increases supply chain complexity.
The manufacturer may need to manage PCBAs, enclosures, cables, hardware, molded parts, displays, power supplies, labels, packaging materials, adhesives, gaskets, and customer-supplied components. Each item may have different suppliers, lead times, minimum order quantities, and quality requirements.
Before production begins, OEMs should review:
- Long lead time mechanical parts
- Custom enclosure availability
- Cable and harness sourcing
- Label and packaging materials
- Customer-supplied items
- Approved alternates
- Revision-specific parts
- Minimum order quantities
- Forecast expectations
- Critical supplier risks
A missing enclosure or cable can delay shipment just as easily as a missing electronic component.
For box build programs, supply chain planning must include the full product.
Quality Control for Finished Products
Quality control at the box build level must include both electrical and mechanical requirements.
A finished product may need to be inspected for workmanship, fit, function, cosmetic condition, labeling, packaging, and documentation. These requirements should be defined before production begins.
Quality checks may include:
- Mechanical fit inspection
- Hardware verification
- Cable routing inspection
- Connector seating
- Label placement
- Cosmetic review
- Functional test results
- Serialization records
- Packaging inspection
- Final release approval
For regulated or high-reliability products, these records may be part of the product history and long-term traceability.
Why OEMs Use EMS Partners for Box Build
Some OEMs manage PCB assembly with one supplier and final assembly internally or with another vendor. That model can work, but it can also create handoffs, duplicated documentation, added shipping, and more coordination for the OEM.
Using an EMS partner for box build can help simplify the process.
Potential benefits include:
- Fewer supplier handoffs
- Better continuity from PCBA to final assembly
- Improved communication
- Reduced shipping between vendors
- More complete production visibility
- Integrated test planning
- Coordinated material management
- Streamlined final release
For OEMs with complex products, box build support can reduce internal workload and help create a more connected path from board assembly to finished unit.
When Box Build Should Be Discussed
Box build should be discussed early, ideally before the PCB design and enclosure design are finalized.
Early discussion allows the EMS partner to identify potential manufacturing concerns, test access issues, cable routing problems, enclosure fit risks, or documentation gaps before they become production delays.
OEMs should involve their manufacturing partner when:
- The enclosure is being selected or designed
- Connector locations are being finalized
- Cable routing is being planned
- Test access is being defined
- Labels and serial numbers are being specified
- Packaging requirements are being developed
- Firmware or configuration control is being planned
- Production volume is being forecasted
The earlier the full product is reviewed, the easier it is to build consistently.
How Foxtronics EMS Supports Box Build Assembly
Foxtronics EMS supports OEMs with PCB assembly, testing, integration, supply chain management, production services, and box build assembly.
This matters because many OEM products require more than a completed circuit board. They require a partner that can understand how the board, enclosure, cables, firmware, labels, test process, packaging, and final product requirements work together.
Foxtronics helps customers approach box build as part of a connected manufacturing process. From prototype and NPI support to PCB assembly, functional testing, system integration, and production support, the goal is to help OEMs reduce handoffs and improve continuity from board-level assembly to finished product.
For products that require mechanical integration, cable assemblies, molded components, automation support, or scalable production, the broader Foxtronics EMS group structure can help align the right resources around the program.
Conclusion
Box build assembly is where PCB assemblies become finished products.
That transition requires planning. Enclosures, cables, hardware, firmware, labels, serial numbers, test procedures, packaging, and quality requirements all need to be defined clearly before production begins.
A strong box build strategy helps OEMs reduce handoffs, improve manufacturing continuity, and confirm that the final product is assembled, configured, tested, and packaged correctly.
Foxtronics EMS helps OEMs manage this stage by connecting PCB assembly, testing, integration, supply chain support, and production services within a broader manufacturing platform.
For OEMs building complex electronics, the finished product is not created by the board alone.
It is created by every integration step that turns that board into a reliable, ready-to-ship system.
