Mixed Technology PCB Assembly: Why Many OEM Products Still Need More Than SMT

Surface mount technology (SMT) has transformed electronics manufacturing.

SMT allows manufacturers to place small components quickly, accurately, and efficiently. It supports compact designs, high component density, automated placement, and scalable production. For many modern electronic products, SMT is the foundation of PCB assembly.

But SMT is not the entire story.

Many OEM products still require a combination of surface mount components, through-hole components, hand assembly, mechanical hardware, connectors, cables, power devices, and final integration steps. These products require mixed-technology PCB assembly.

Mixed technology assembly is common in industrial controls, medical devices, aerospace systems, power electronics, agricultural equipment, communications hardware, instrumentation, and other products that must balance electrical performance, mechanical strength, serviceability, and long-term reliability.

For OEMs, the important question is not whether SMT or through-hole assembly is better.

The real question is which combination of processes gives the product the best chance to perform reliably in the field.

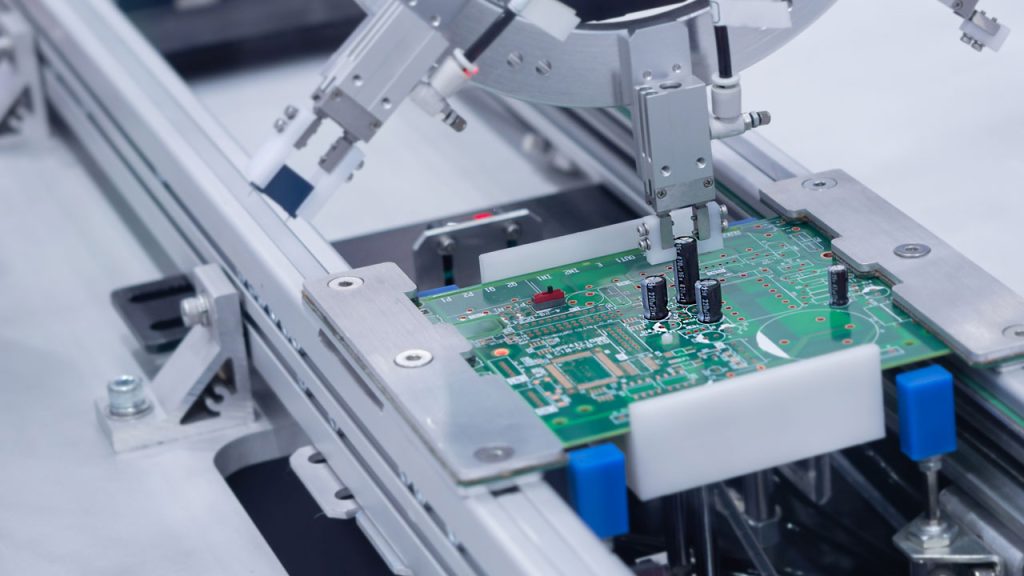

What Is Mixed Technology PCB Assembly?

Mixed technology PCB assembly refers to a circuit board that uses more than one PCB assembly method.

Most commonly, this means a combination of surface mount technology and through-hole assembly. A board may include small SMT resistors, capacitors, ICs, microcontrollers, sensors, and passive components, while also using through-hole connectors, relays, transformers, terminal blocks, switches, power components, or mechanically stressed parts.

A mixed technology assembly may include:

1. Surface mount components
2. Through-hole components
3. Press-fit connectors
4. Hand-soldered components
5. Mechanical hardware
6. Cable or harness connections
7. Heatsinks or thermal components
8. Conformal coating
9. Programming steps
10. Functional testing
11. Box build integration
12. Final inspection and packaging

These assemblies require planning because each process affects the next. The board layout, component selection, soldering method, inspection approach, and test strategy all need to work together.

Why SMT Alone Is Not Always Enough

SMT is ideal for many electronic components, but some product requirements are better served by through-hole assembly or manually installed parts.

Through-hole components are often used when the assembly requires additional mechanical strength. Connectors, terminal blocks, power components, switches, and large capacitors may experience physical stress during installation, service, vibration, handling, or field use. In those cases, the plated through-hole connection can provide stability that may not be practical with SMT alone.

Through-hole or mixed assembly may also be used when:

1. Components are too large for standard SMT placement
2. Mechanical strength is critical
3. High current or high voltage requirements are involved
4. Connectors will experience repeated mating cycles
5. Legacy designs still use through-hole parts
6. Product serviceability is important
7. Certain components are only available in through-hole packages
8. Thermal management requires larger component bodies or hardware
9. Field reliability is more important than board miniaturization

The decision is not always about using the newest process. It is about using the right process for the product.

Where Mixed Technology Assembly Is Common

Mixed technology PCB assembly appears across many industries because many products must function in real-world environments, not just controlled laboratory conditions.

Industrial systems often use connectors, relays, power devices, terminal blocks, and control interfaces that require mechanical strength. Medical and life science products may require reliable connections, controlled processes, documentation, and long-term consistency. Aerospace and defense systems may require rugged assemblies designed for vibration, temperature variation, and demanding operating conditions. Agricultural equipment may require electronics that can withstand outdoor use, environmental exposure, and repeated mechanical stress.

Mixed technology assembly is common in products such as:

1. Industrial control boards
2. Medical device electronics
3. Aerospace and defense assemblies
4. Power supply boards
5. Motor control systems
6. Agricultural electronics
7. Communications hardware
8. Test and measurement equipment
9. Automation systems
10. Sensor interfaces
11. Operator control panels
12. Legacy product assemblies

These products often need both the efficiency of SMT and the durability of through-hole assembly.

Design Considerations for Mixed Technology PCB Assembly

Mixed technology designs require early manufacturing input.

A board that includes both SMT and through-hole parts may need a more detailed review than a standard SMT assembly. The manufacturing partner must consider component placement, soldering sequence, access for inspection, thermal mass, board handling, and rework requirements.

Important design considerations include:

1. Component spacing
2. Connector orientation
3. Keep-out areas
4. Wave solder compatibility
5. Selective solder requirements
6. Hand solder access
7. Thermal relief design
8. Board support during assembly
9. Test point placement
10. Mechanical stress points
11. Conformal coating clearance
12. Final enclosure fit

These details can affect build quality, production efficiency, and long-term reliability.

A design may function electrically but still create unnecessary manufacturing difficulty. When mixed technology requirements are reviewed early, OEMs can often reduce rework, improve yield, and simplify production.

Assembly Sequence Matters

Mixed technology PCB assembly requires a clear build sequence.

SMT components are typically placed first using automated equipment and reflow soldering. Through-hole components may be installed later using wave soldering, selective soldering, or hand soldering. Mechanical hardware, cables, programming, coating, and box build steps may follow.

The correct sequence depends on the product.

For example, a tall connector may need to be installed after reflow. A heat-sensitive component may require manual placement. A large through-hole component may affect board support during soldering. A cable assembly may need to be installed before final test. A conformal coating step may require masking before application.

A strong assembly plan helps prevent avoidable problems such as:

1. Component interference
2. Heat damage
3. Insufficient solder joints
4. Poor inspection access
5. Inconsistent manual assembly
6. Rework difficulty
7. Mechanical fit issues
8. Test access limitations
9. Coating coverage problems
10. Packaging or handling damage

Production success depends on more than the bill of materials. It depends on how the assembly is actually built.

Through-Hole Assembly Still Plays an Important Role

Although SMT receives much of the attention in modern PCB assembly, through-hole assembly remains important for many OEM products.

Through-hole components provide strong mechanical connections and are often used in areas of the board that must withstand stress. This is especially true for connectors, terminal blocks, transformers, relays, switches, fuses, and larger power components.

Through-hole assembly may support:

1. Mechanical durability
2. High current requirements
3. High voltage spacing
4. Field serviceability
5. Rugged product designs
6. Long lifecycle products
7. Legacy component compatibility
8. Reliable connector retention

For OEMs, removing through-hole components is not always the right decision. In some products, they are part of the reliability strategy.

The key is to make sure through-hole requirements are planned correctly and integrated into the broader assembly process.

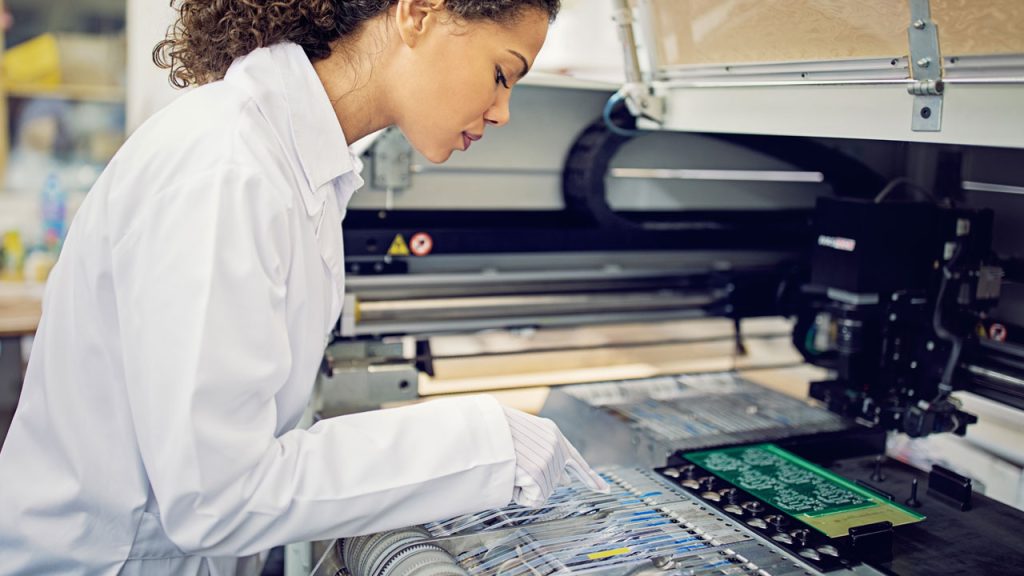

Inspection and Quality Control for Mixed Technology Boards

Mixed technology assemblies require layered inspection.

SMT solder joints, through-hole solder joints, connector alignment, component polarity, mechanical hardware, coating, cables, and final integration details may all require inspection at different points in the process.

Inspection may include:

1. Automated optical inspection
2. X-ray inspection when required
3. Visual inspection
4. First article inspection
5. Through-hole solder joint inspection
6. Polarity and orientation checks
7. Connector alignment checks
8. Mechanical hardware verification
9. In-process quality checks
10. Final inspection
11. Functional test review
12. Traceability documentation

Because mixed technology assemblies combine different processes, quality planning should be specific. The manufacturing team should know what to inspect, when to inspect it, and what acceptance criteria apply.

This is especially important for products used in regulated, industrial, or high-reliability environments.

Test Strategy for Mixed Technology PCB Assembly

Testing should be considered early in the design and manufacturing planning process.

Mixed technology boards may include digital circuits, analog sections, power circuits, communication interfaces, connectors, sensors, or mechanical controls. A single test method may not be enough to confirm that the assembly is ready for shipment.

Test planning may include:

1. In-circuit testing
2. Flying probe testing
3. Functional testing
4. Programming verification
5. Boundary scan testing
6. Power-up testing
7. Continuity checks
8. System-level testing
9. Customer-supplied fixtures
10. Environmental or stress testing when required
11. Test data collection
12. Failure analysis process

The best test strategy depends on the product, risk level, production volume, and customer requirements.

For OEMs, test strategy should not be treated as an afterthought. It should be part of the production plan from the beginning.

Supply Chain Considerations for Mixed Technology Products

Mixed technology assemblies can also create supply chain complexity.

A board may include common SMT passives, specialized ICs, large mechanical components, custom cables, molded parts, connectors, power devices, hardware, labels, and packaging materials. Each item may have different lead times, availability risks, minimum order quantities, and approved vendor requirements.

OEMs should confirm:

1. Long lead time components
2. Approved alternate parts
3. Connector availability
4. Legacy component status
5. Custom cable requirements
6. Mechanical hardware sourcing
7. Compliance requirements
8. Customer supplied material
9. Lifecycle status
10. Forecast expectations
11. Production volume assumptions
12. Critical supply risks

A mixed technology product may be delayed by a small mechanical component just as easily as by an integrated circuit. A strong EMS partner reviews the full material picture, not just the electronic components.

Mixed Technology and Box Build Integration

Many mixed technology PCB assemblies eventually become part of a larger product.

The assembled board may need to be installed into an enclosure, connected to cables, integrated with displays or controls, programmed, tested, labeled, and packaged. This makes box build assembly planning important.

A board may pass electrical test but still create problems during final integration if connector placement, cable routing, hardware access, or enclosure fit were not considered early.

Box build planning may include:

1. Enclosure fit
2. Cable routing
3. Strain relief
4. Connector access
5. Hardware installation
6. Labeling and serialization
7. Firmware loading
8. Final system testing
9. Packaging requirements
10. Service access
11. Mechanical inspection
12. Shipping configuration

When PCB assembly and box build requirements are reviewed together, the product has a better chance of moving through production smoothly.

Why OEMs Need the Right EMS Partner

Mixed technology PCB assembly requires more than equipment.

It requires experience, process planning, documentation discipline, skilled operators, sourcing support, inspection capability, and clear communication. The EMS partner must understand how SMT, through-hole assembly, manual processes, test, coating, integration, and production requirements work together.

OEMs should look for a partner that can support:

1. SMT assembly
2. Through-hole assembly
3. Mixed technology builds
4. Design for manufacturability review
5. Test planning
6. Supply chain support
7. Quality documentation
8. Box build and system integration
9. Production scaling
10. Long-term program support

The right EMS partner helps reduce risk by identifying potential issues before they affect production.

How Foxtronics EMS Supports Mixed Technology Assembly

Foxtronics EMS supports OEMs with PCB assembly services that include SMT, through-hole, mixed technology assembly, box build, test, inspection, supply chain support, and production services.

This is important because many OEM products cannot be reduced to one process. A complex assembly may require automated SMT placement, selective or hand soldering, mechanical integration, cable assemblies, functional testing, and final product support.

Across the Foxtronics EMS group facilities, customers gain access to capabilities that support different parts of the manufacturing journey. Prototype and NPI needs, high-reliability PCB assembly, production scaling, automation support, injection molding, and system integration can all play a role depending on the program.

The goal is to help OEMs build products that are not only assembled correctly, but assembled with the right process for the application.

Conclusion

SMT is essential to modern electronics manufacturing, but many OEM products still need more than SMT alone.

Mixed technology PCB assembly gives manufacturers the flexibility to combine surface mount efficiency with through-hole strength, mechanical reliability, power handling, serviceability, and system-level integration.

For OEMs, the key is to plan these requirements early. Component selection, layout, soldering method, inspection, test strategy, supply chain planning, and box build requirements all influence production success.

Foxtronics EMS helps customers manage that complexity by supporting SMT assembly, through-hole assembly, mixed technology builds, testing, box build, supply chain coordination, and scalable manufacturing.

In complex electronics manufacturing, success is not about choosing one assembly method over another.

It is about choosing the right process for the product, the application, and the environment where it needs to perform.

At Foxtronics EMS, we help OEMs achieve reliable builds – connect with us to strengthen your next project.
